Product Overview

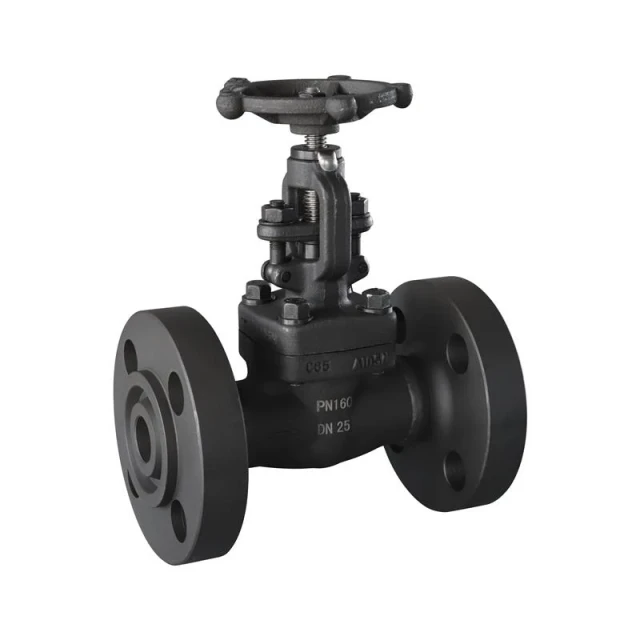

Premium forged steel flanged globe valves engineered for precise flow regulation in critical process systems. Featuring heavy-duty forged construction (ASTM A105/A182) with flanged connections (ASME B16.5), these valves deliver exceptional throttling performance and leak-tight shutoff in high-pressure steam, oil & gas, and chemical applications.
Key Advantages
✔ Precise Flow Control - Excellent throttling characteristics
✔ Forged Steel Body - Superior strength vs. cast alternatives
✔ Fire-Safe Option - API 607 compliant models available
✔ Low Maintenance - Removable seat & disc design
✔ Bubble-Tight Shutoff - ISO 5208 Rate A leakage standard
Advanced Design Features
Y-Pattern Body - Reduced pressure drop
Metal-to-Metal Seating - For high-temperature service
Anti-Static Device - Standard on all sizes
Bellows Seal Option - For zero-emission requirements
ISO 5211 Mounting Pad - Ready for actuator installation
Industry Applications
Power Generation: Steam & feedwater control
Oil & Gas: Pipeline regulation, wellhead control
Petrochemical: Refinery process systems
Chemical Processing: Corrosive media handling
Cryogenic Service: LNG and industrial gas systems
Optional Features
- Cryogenic/extended bonnet versions
- NACE MR0175 compliance
- Electric/pneumatic actuators
- Bellows seal stem design
Why Choose Our Globe Valves?
✅ Superior Flow Control - Precise regulation with minimal cavitation
✅ Extended Service Life - Hard-faced trim components
✅ Global Certifications - API, PED, ISO, NACE MR0175
✅ Custom Solutions - Special materials, extended bonnets
