Overview

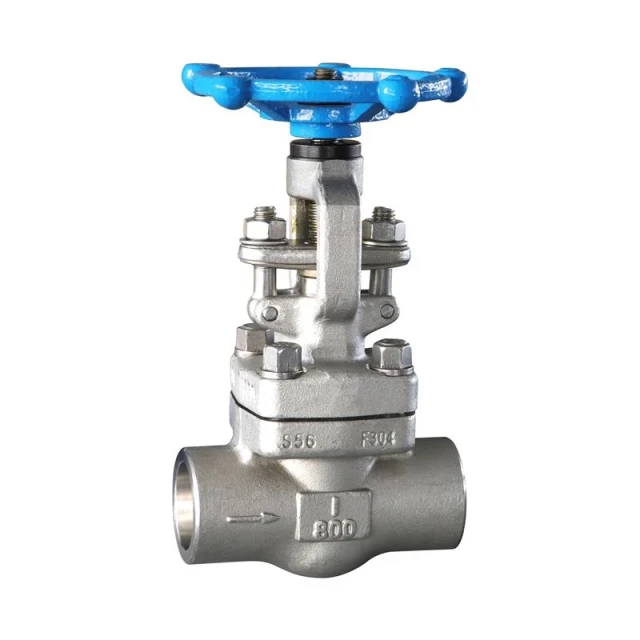

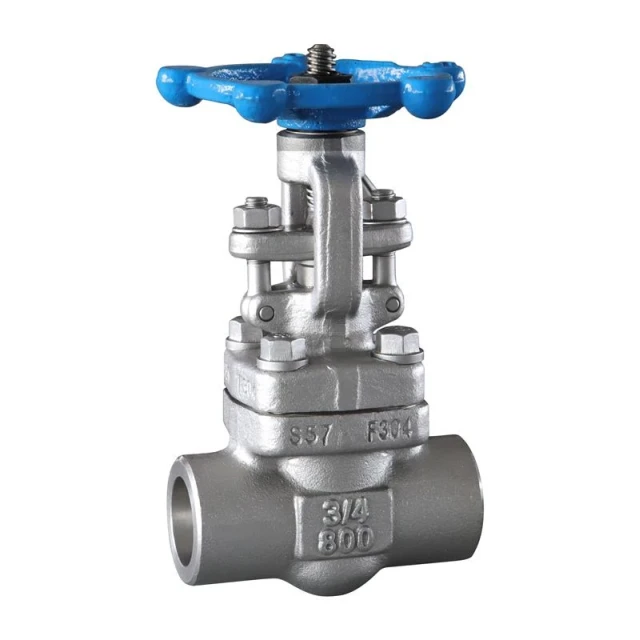

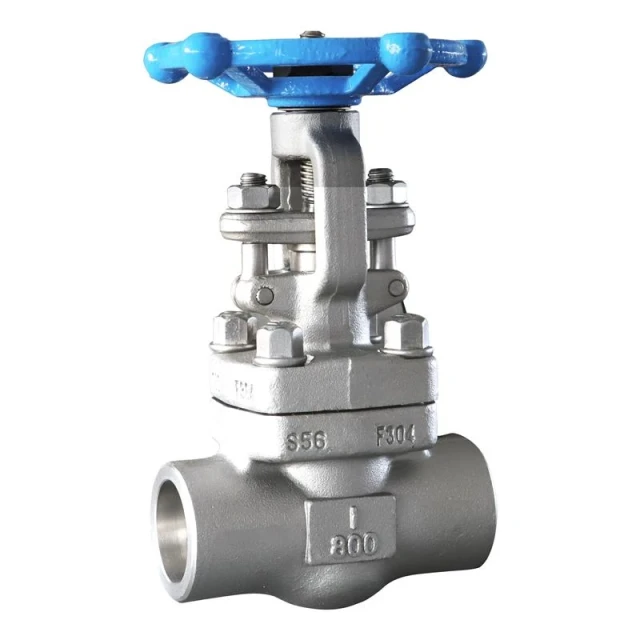

Forged steel butt welded gate valves are designed for reliable isolation in high-pressure, high-temperature piping systems. Manufactured from premium forged steel (ASTM A105, A182 F304/F316, etc.), these valves provide superior strength, corrosion resistance, and long-term durability in critical service applications.
Featuring a rigid, leak-proof butt weld connection, they are ideal for permanent installations where maximum sealing integrity is required. Their rising stem design ensures clear visual indication of valve position.
Key Features
✔ Full Bore Design – Minimal pressure drop and unrestricted flow
✔ Fire-Safe Construction – API 607/6FA compliant options available
✔ Blowout-Proof Stem – Ensures safety in high-pressure applications
✔ Forged Steel Body – Superior to cast alternatives in strength and reliability
✔ Butt Weld Ends – ASME B16.25 compliant for perfect pipeline integration
✔ Flexible Seat Options – Metal-seated (for high temps) or soft-seated (bubble-tight shutoff)
Applications
✔ Oil & Gas – Pipeline isolation, wellhead service, refineries
✔ Power Generation – Steam lines, boiler feed systems
✔ Petrochemical – High-pressure hydrocarbon service
✔ Chemical Processing – Corrosive media handling
✔ Shipbuilding & Offshore – Marine and subsea applications
Why Choose Our Forged Steel Gate Valves?
✅ Zero-Leakage Performance – Precision-machined seats ensure bubble-tight shutoff
✅ Extended Service Life – Hardened trim resists wear and galling
✅ High-Pressure Capability – Suitable for the most demanding services
✅ Custom Configurations – Available in special materials, extended bonnets, and cryogenic designs
✅ Full Compliance – Meets API, ASME, ISO, and NACE standards
