Product Overview

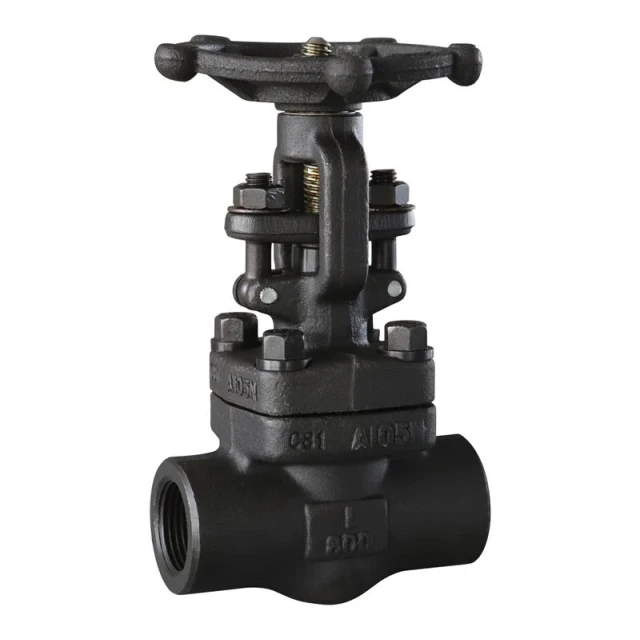

Our forged steel threaded globe valves provide exact flow regulation in high-pressure piping systems requiring NPT or BSP threaded connections. Manufactured from premium ASTM A105/A182 forged steel, these valves combine precise throttling capability with the installation convenience of threaded ends for instrument lines, chemical injection, and auxiliary systems.
Key Benefits
✔ Superior Flow Control – Linear/equal percentage characteristics
✔ Compact Threaded Design – Saves space versus flanged valves
✔ Forged Construction – Stronger than cast equivalents
✔ Fire-Safe Option – API 607 compliant versions available
✔ Maintenance-Friendly – Removable seat/disk assembly
Advanced Features
Y-Pattern Body – Reduced pressure drop (optional)
Anti-Static Device – Essential for flammable service
Live-Loaded Packing – Maintains seal under thermal cycling
Bellows Seal Option – Zero fugitive emissions
ISO 5211 Mounting – Ready for actuator installation
Industry Applications
Chemical Injection – Metering pumps & skids
Steam Service – Instrumentation lines
Hydraulic Systems – Precision pressure control
Tank Farms – Product blending systems
Compressor Stations – Lube oil circuits
Optional Features
- NACE MR0175 compliance
- Cryogenic extended bonnets
- Special disk guides (anti-vibration)
- Position indicators
Why Choose Our Valves?
✅ Precise Regulation – Excellent throttling capability
✅ Long Service Life – Hard-faced trim components
✅ Leak-Free Threads – Precision-cut connections
✅ Global Certifications – API, ASME, PED, GOST
