Product Overview

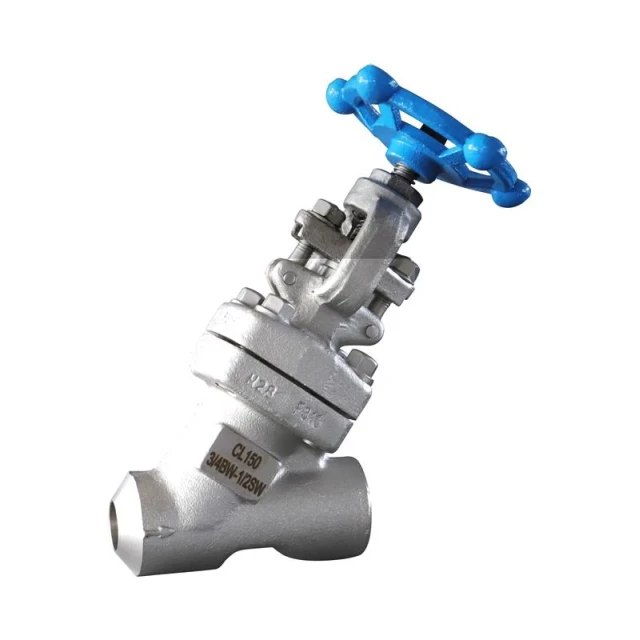

Our forged steel Y-type globe valves feature an optimized 45° angled flow path that reduces pressure drop by 30-40% compared to standard globe valves. Manufactured from ASTM A105/A182 forged steel, these high-performance valves provide precise flow regulation with minimal energy loss in steam, gas, and liquid applications across power generation, oil & gas, and process industries.
Key Advantages
✔ Low Pressure Drop – Y-pattern design minimizes turbulence
✔ Superior Throttling – Precise flow control characteristics
✔ Forged Construction – Higher strength than cast alternatives
✔ Extended Service Life – Hard-faced trim components
✔ Multi-Directional – Can be installed horizontally or vertically
Design Features
45° Angled Flow Path – Reduced turbulence and erosion
Balanced Plug Option – For high ΔP applications
Anti-Cavitation Trim – Multi-stage pressure reduction
Extended Bonnet – For extreme temperature services
Live-Loaded Packing – Maintains seal integrity
Performance Comparison
Feature Y-Type Globe Valve Standard Globe Valve
Pressure Drop 30-40% lower Higher
Flow Capacity (Cv) 25-35% greater Standard
Service Life 50% longer Standard
Installation Angles Multiple orientations Limited
Maintenance Easier access More difficult
Industry Applications
Power Plants: Main steam, feedwater control
Oil & Gas: Pipeline pressure regulation
Refineries: Process flow control
Chemical Processing: Corrosive media handling
Marine Systems: Boiler and fuel control
Optional Features
- Bellows stem seal (zero emissions)
- Cryogenic extended stems
- Position indicators
- Actuator mounting pads (ISO 5211)
