Key Features
- Three-Way Configuration:This valve allows for either mixing or diverting fluid between two inlet or outlet ports, offering flexibility in system design and fluid control. It supports both L-port and T-port configurations, depending on system requirements.
- High Platform Design:The high platform body construction provides superior strength and stability, making it ideal for high-pressure and high-temperature environments.
- Flanged Connections:Features standard flanged connections (ANSI, DIN, JIS, or custom), ensuring secure, leak-tight installation into your piping system.
- Full-Bore Design:The full-bore ball ensures minimal pressure drop, optimal flow capacity, and smooth operation, enhancing the efficiency of your fluid system.
- Durable and Reliable:Constructed from high-quality materials like stainless steel, carbon steel, or alloy steels, the valve is resistant to corrosion, wear, and thermal expansion.
- Precise Control:Engineered for precision, the valve ensures reliable flow diversion or mixing in applications where accurate control is essential.
- Leak-Proof Sealing:High-performance seals provide tight shut-off and prevent leakage, ensuring system integrity and safety.
- Versatile Actuation Options:Available with manual, electric, or pneumatic actuators, giving you flexible control for both automated and manual operation.
Applications
- Oil & Gas Industry (Pipeline Switching, Diverting Flow)
- Petrochemical and Chemical Processing (Mixing and Diverting Fluids)
- Water and Wastewater Treatment (Flow Regulation and Distribution)
- Power Generation (Steam and Fluid Control)
- HVAC Systems
- Food & Beverage Processing
- Industrial Fluid Handling Systems
Product Benefits
- Versatile Flow Control:The three-way configuration provides the ability to mix or divert flow paths, offering flexible system design and greater control over fluid processes.
- High-Pressure & High-Temperature Performance:The high platform design ensures that the valve can handle high-pressure and high-temperature environments with ease, making it suitable for demanding industrial applications.
- Leakage Prevention:Precision seals and robust construction ensure that the valve provides leak-tight operation, maintaining system safety and integrity.
- Optimized Flow Efficiency:The full-bore ball design minimizes flow resistance, reducing pressure drop and ensuring optimal system performance.
- Long Service Life:Constructed from durable materials, this valve is built to last in harsh conditions, reducing the need for frequent maintenance and replacements.
- Flexibility in Actuation:Available with a range of actuation options, including manual, electric, or pneumatic actuators, allowing for easy integration into both manual and automated systems.
Technical Specifications
- Valve Material:Stainless steel, carbon steel, alloy steels (custom materials available upon request)
- Design Type:Three-way ball valve (L-port or T-port options available)
- Pressure Rating:PN16 (16 bar, up to 232 psi) or customized pressure ratings
- Temperature Range:-20°C to 180°C (-4°F to 356°F) (custom temperature ranges available)
- Size Range:Available from 1 inch to 12 inches (DN25 to DN300)
- Connection Types:Flanged (ANSI, DIN, JIS, or other custom connections)
- Seal Material:PTFE, PEEK, or other suitable sealing materials for leak-tight operation
- Actuation Type:Manual, electric, pneumatic (custom actuator options available)
- Flow Coefficient (Cv):Custom flow rates based on valve size and configuration
- Compliance:ISO 9001, API 6D, ANSI, CE, and other industry standards

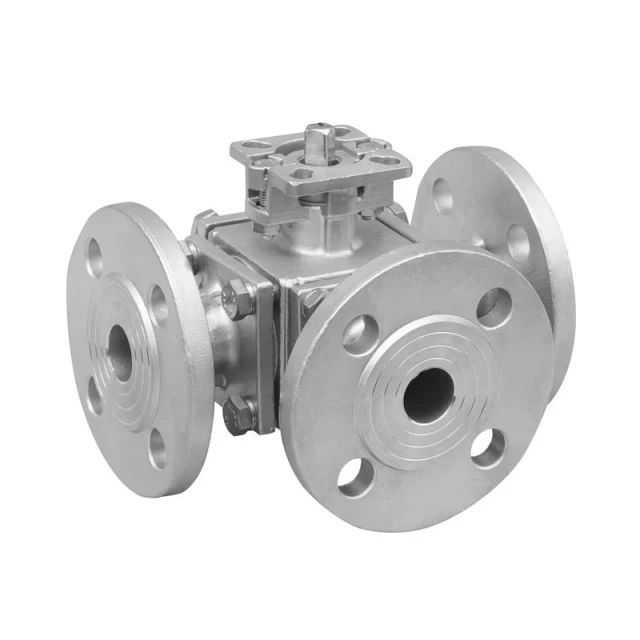

Why Choose Our Q44/45-16P Three-Way High Platform Flanged Ball Valve?
Our Q44/45-16P Three-Way High Platform Flanged Ball Valve is the ideal solution for applications that require versatile flow control in high-pressure, high-temperature environments. Whether you're handling fluid mixing, diverting flow paths, or managing complex fluid systems, this valve offers reliable performance, long-term durability, and superior sealing capabilities. With its flexible actuation options and robust construction, it is the perfect choice for industries demanding precision, efficiency, and safety.
