Key Features
- High Platform Design:The valve features a high platform body structure that ensures a secure and stable operation even under high-pressure conditions, reducing the risk of valve deformation and failure.
- Flanged Connection:Standard flanged connections (ANSI, DIN, JIS, or custom) allow for easy integration with existing piping systems, providing a secure and leak-proof seal.
- Durable Construction:Constructed from high-quality materials like stainless steel or carbon steel, offering excellent resistance to corrosion, wear, and thermal expansion for long-lasting performance.
- Reliable Sealing:Equipped with precision-engineered seats and seals, ensuring tight shut-off and leak-proof operation even in high-pressure and high-temperature environments.
- Wide Pressure and Temperature Range:Designed to handle a broad range of temperatures and pressures, making it suitable for both standard and demanding industrial applications.
- Enhanced Flow Capacity:The ball valve design allows for smooth, unrestricted flow, reducing pressure drops and maintaining system efficiency.
- Ease of Maintenance:The simple, robust design allows for easy disassembly and maintenance, minimizing downtime and reducing operational costs.
- Versatile Application:Available with a variety of actuator options (manual, electric, pneumatic) for flexibility in different operational environments.
Applications
- Oil & Gas Industry (Upstream, Midstream, and Downstream)
- Petrochemical and Chemical Processing
- Power Generation (Boiler and Steam Control)
- Water and Wastewater Treatment
- HVAC Systems
- Pipeline Systems
- Cryogenic Applications
- Food & Beverage Processing
Product Benefits
- High Performance in Harsh Conditions:The high platform design provides enhanced strength and stability, ensuring reliable operation under high-pressure and high-temperature conditions.
- Leak-Proof Operation:With high-quality seals and a precision-engineered ball, the valve ensures excellent shut-off, preventing leaks and maintaining system integrity.
- Long Service Life:Built with corrosion-resistant materials and designed for heavy-duty applications, this valve offers a long lifespan with minimal maintenance.
- Reduced Pressure Drop:The full-bore design reduces flow resistance, resulting in less pressure drop and optimized system performance.
- Flexible Control Options:The valve can be equipped with manual, electric, or pneumatic actuators, making it versatile for different flow control needs.
- Cost-Effective:Durable construction and minimal maintenance requirements reduce total operating costs and improve system efficiency over time.
Technical Specifications
- Valve Material:Stainless steel, carbon steel, alloy steels (custom materials available upon request)
- Platform Design:High platform body for improved stability and sealing
- Actuation Type:Manual, electric, pneumatic (custom actuation options available)
- Pressure Rating:Up to 1500 psi (custom pressure ratings available)
- Temperature Range:-20°C to 300°C (-4°F to 572°F) (custom temperature ranges available)
- Size Range:Available from 1 inch to 24 inches (DN25 to DN600)
- Connection Type:Flanged (ANSI, DIN, JIS, or other customer-specified standards)
- Seal Material:PTFE, PEEK, metal alloys, or custom materials depending on the application
- Flow Coefficient (Cv):Custom flow coefficients based on valve size and configuration
- Compliance:ISO 9001, API 6D, ANSI, CE, and other industry standards

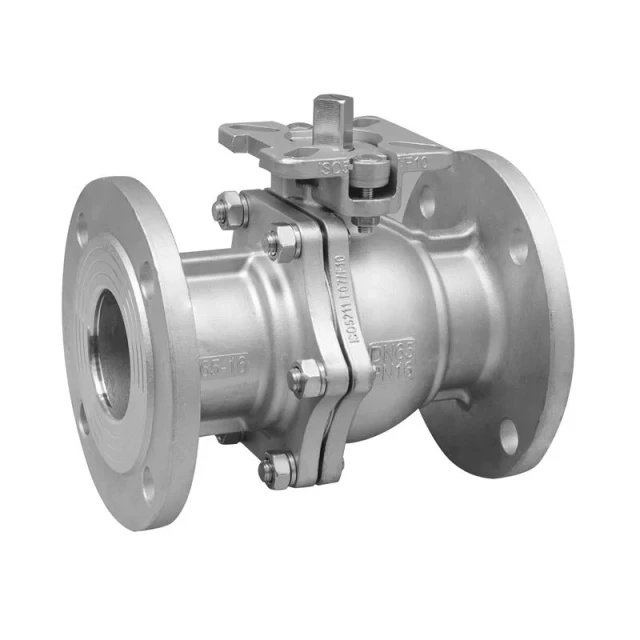

Why Choose Our GB High Platform Flanged Ball Valve?
Our GB High Platform Flanged Ball Valve is built for demanding industrial applications, offering exceptional performance and reliability. Whether you're dealing with high pressures, high temperatures, or harsh chemicals, this valve ensures secure flow control, minimal leakage, and long-term durability. Its high platform body design provides enhanced strength, while its easy-to-maintain construction reduces operational downtime and maintenance costs.
For applications where reliability and performance are critical, our high-quality flanged ball valve delivers the best in flow control, sealing, and durability.
