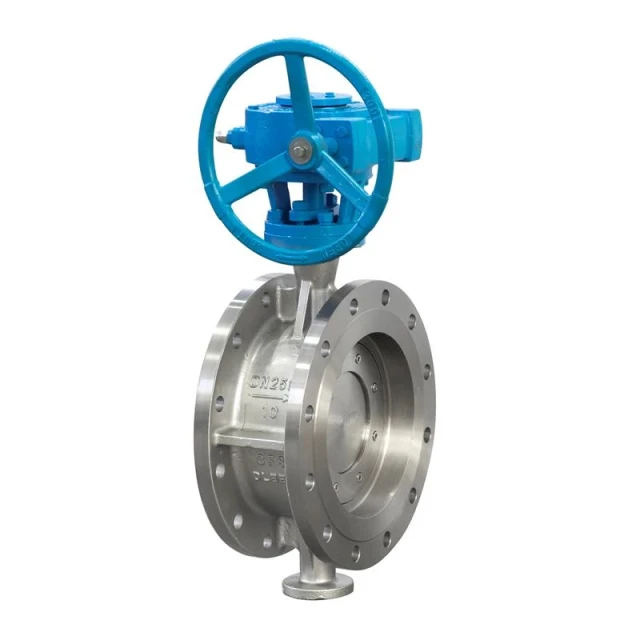

GB Flange Butterfly Valve

• Flanged Connection: The flanged design allows for easy installation and secure connection to pipelines, providing a leak-proof seal and minimizing the risk of installation errors.
• Efficient Flow Control: Offers precise and reliable control over the flow of liquids, gases, and slurries. The butterfly disc rotates 90 degrees to open or close the valve, ensuring smooth operation.
• Compact and Lightweight: The valve’s compact construction makes it easier to handle and install, even in tight spaces, while reducing the overall weight of the system.
• Durable and Reliable: Made from high-quality materials such as stainless steel, cast iron, or carbon steel, the valve is designed to withstand harsh operating conditions, including high temperatures, pressures, and corrosive media.
• Sealing Performance: Equipped with advanced sealing technology, ensuring tight shutoff and minimal leakage, even in demanding applications.
• Corrosion and Wear Resistance: Suitable for a wide range of aggressive fluids and environmental conditions, the valve is resistant to corrosion, erosion, and wear, ensuring long-term reliability.
• Wide Range of Applications: Perfect for use in industries such as water treatment, HVAC systems, power plants, oil and gas, chemical processing, and more.

• Water Treatment: Used in drinking water supply, sewage treatment, and desalination plants for flow control and isolation of pipelines.
• HVAC Systems: Controls air, steam, or water flow in heating, ventilation, and air conditioning systems.
• Oil & Gas: Provides reliable shutoff and flow control in pipelines transporting crude oil, natural gas, and refined products.
• Chemical Processing: Ideal for handling a variety of chemicals and corrosive fluids, offering safe and efficient flow control.
• Power Generation: Used in cooling systems, steam lines, and other critical systems in power plants for precise fluid control.
• Mining & Slurry Systems: Suitable for controlling abrasive slurries, ensuring smooth operation even in tough conditions.
• Food and Beverage: Used in food and beverage production lines where clean and sanitary fluid control is required.

High-Quality Construction:

Manufactured according to GB (Chinese National Standard)specifications, ensuring consistency, reliability, and quality across all units. Available in a variety of materials, including stainless steel, carbon steel, and cast iron.

Precise Flow Control:

The valve provides precise regulation of fluid flow, making it ideal for systems that require careful flow adjustment.

Low Pressure Drop:

With its streamlined design, the butterfly valve offers low pressure drop when open, improving the efficiency of fluid transport and reducing energy consumption in pipelines.

Tight Shutoff:

Advanced sealing technology ensures a tight shutoffwith minimal leakage, even under high-pressure and high-temperature conditions, offering enhanced reliability for critical applications.

Easy Installation and Maintenance:

The flanged connectionmakes installation quick and straightforward, while the simple design allows for easy maintenance, reducing downtime and operational costs.

Corrosion Resistance:

Built to resist corrosion and wear, the valve offers long-lasting performance even in harsh environments, ensuring a longer service life with minimal maintenance.

Versatility:

The valve is ideal for a wide range of applications across multiple industries, from industrial plants to municipal systems, offering both on/offand flow-regulating

Cost-Effective:

The GB Flange Butterfly Valve provides an excellent balance of performance, durability, and cost, making it a cost-effective solution for both new installations and system upgrades.

• Size Range: Available in sizes from DN50 (2") to DN1200 (48"), with custom sizes available upon request.
• Pressure Rating: Suitable for pressures up to PN10, PN16, or higher, depending on material and design specifications.
• Temperature Range: The valve can operate within a temperature range of -20°C to 200°C, depending on the materials used.
• Materials: Common materials include stainless steel, carbon steel, ductile iron, and cast iron, with optional coatings for additional corrosion resistance.
• Actuation Options: Available with manual, electric, or pneumatic actuators to meet specific application needs.
• Sealing Material: EPDM, NBR, Viton, or PTFEsealing options, depending on the media and temperature requirements.
• Face-to-Face Dimensions: Complies with ISO 5752, API 609, or DIN 3202face-to-face dimensions for compatibility with most international standards.
• Connection Type: Flanged connection with standard drilling patterns to ensure easy integration with existing systems.

The GB Flange Butterfly Valve operates by rotating a disc within the valve body to control the flow of fluids. When the valve is opened, the disc rotates 90 degrees to allow the fluid to pass through with minimal resistance. When closed, the disc blocks the flow path, providing a tight seal that prevents leakage. The valve’s flanged connection ensures a secure, leak-proof installation, while its compact design ensures that it operates smoothly and efficiently in various applications.

Why Choose Our GB Flange Butterfly Valve?

• Reliable Performance: Engineered for high-quality performance, our GB Flange Butterfly Valve ensures long-term reliability and consistent operation in demanding conditions.
• Durability: Built with top-quality materials and advanced sealing technologies, this valve is resistant to corrosion, wear, and high temperatures, providing a long service life.
• Global Standards: Manufactured according to GB standards, ensuring compatibility with global specifications and ease of integration into various systems.
• Cost-Effective: The valve offers excellent performance at a competitive price point, making it an ideal solution for a wide range of applications.
