Product Overview

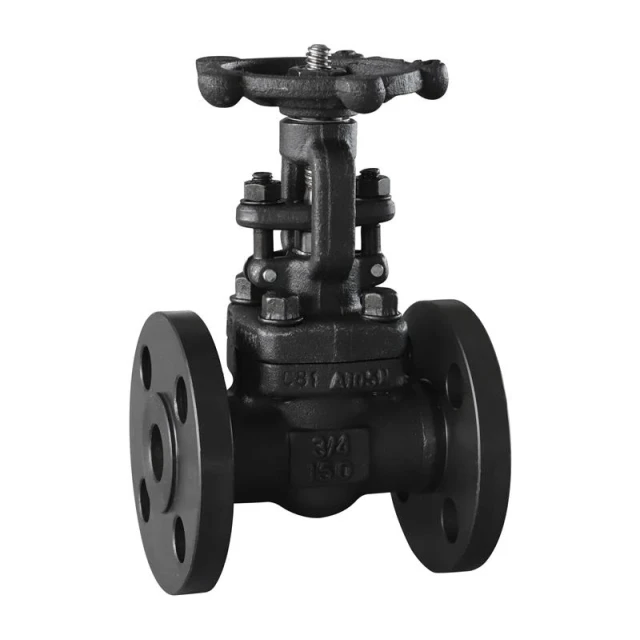

Premium forged steel flanged gate valves designed for positive shut-off in critical pipeline systems. Featuring robust forged construction (ASTM A105/A182) and flanged connections (ASME B16.5), these valves deliver superior performance in high-pressure, high-temperature applications across oil & gas, power generation, and petrochemical industries.
Key Features
✔ 100% Forged Steel Body – Maximum strength and durability
✔ Rising Stem Design – Clear visual position indication
✔ Fire-Safe Option – API 607 compliant models available
✔ Low Operating Torque – Easy operation even at high pressures
✔ Bubble-Tight Shutoff – ISO 5208 Rate A leakage standard
Advanced Design Features
Flexible Wedge Design – Compensates for seat wear
Blowout-Proof Stem – Meets API 600 requirements
Backseat Feature – Allows packing replacement under pressure
ISO 5211 Mounting Pad – Ready for actuator installation
Anti-Static Device – Standard on all sizes
Industry Applications
Oil & Gas: Pipeline isolation, wellhead service
Power Plants: Steam, feedwater systems
Refining: Crude and product pipelines
Chemical Processing: Corrosive media handling
Water Treatment: High-pressure systems
Optional Features
- Cryogenic/extended bonnet versions
- NACE MR0175 compliance
- Special coatings (Xylan, galvanized)
- Gear operators or actuators
Why Choose Our Gate Valves?
✅ Zero-Leak Performance – Precision-machined seats
✅ Extended Service Life – Hard-faced trim components
✅ Global Certifications – API, PED, ISO, NACE MR0175
✅ Custom Solutions – Special materials, extended bonnets
